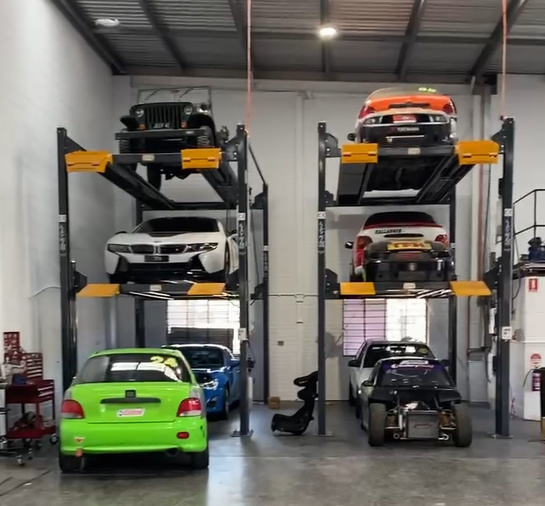

Triple Auto Car Stacker Hoist

Lift King LK-3; Triple Stacker FP-630 - Click link for video

$14,950.00 (incl GST)
$13,800.00 (incl GST) without jacking beam
$ 1,280.00 (Incl GST) Jacking beam seperately

Australia Certified
Triple Auto Car Stacker Hoist

Exclusive to HERO HOISTS (QLD) is the “LIFT KING LK-3 TRIPLE STACKER service and parking hoist.

The “only” triple stacker” on the market with all these exclusive features…

2.0T rolling pneumatic jacking beam for service work
Higher 2100mm ground level height clearance for 4WD’s
Australian Design Certified & Registered for workshops

The LK-3 is a great solution for congested workshops where rental space is at a premium and instead of having to pay for larger premises the only way to get the cars out of the way and give you more working space is to go up…so the triple stacker is your answer! We have also incorporated a rolling pneumatic jacking beam on the 1st level so our triple stacker is not just a storage hoist but also a working hoist for car servicing, and being Australian Design Registered and Certified it’s approved for commercial premises.

The LK-3 is also the perfect solution for the private buyer owning a number of cars who needs to create more space in their home shed or man-cave. With a generous 2100mm under platform clearance on ground level for 4WD parking and a 3600kg weight capacity on 1st level and 2700kg for 2nd level, the LK-3 can handle any situation and is at much at home here as in the commercial workshop.

Triple Car Stacker Hoist

FEATURES:

  • hoist within hoist design with each unit using independent parts and motors
  • CE & Australian Design Registered and Certified to meet WH&S requirements for commercial use
  • 2.0T rolling pneumatic jacking beam to get your wheels off the runway for wheel, brake, suspension and all service work
  • fully electronic push button control system with safety key switch controller for added security
  • double electric safety locking system with a secondary cable break safety system on each post
  • automated safety lock detection, full range of dynamic anti-fail locks, hydraulic cylinder protection with in-built anti-burst valves
  • additional safety provided with emergency stop button, height limit switch and hydraulic overload protection
  • heavy-duty cables and pulleys
  • independent hydraulic cylinders concealed under master platforms using high quality Italian seals
  • heavy duty checker plate anti-skid approach ramps and platforms
  • anti-rust powder coated finish, smart looking 2-tone gunmetal grey posts and crossbeams with black platforms and high visibility yellow approach ramps
  • plastic drip trays supplied providing oil leak protection for the car below
  • metal tool tray for user convenience
  • stop plates either end of runways
  • runway width can be adjusted by sliding slave platforms to accommodate various wheel-based vehicles
  • Warranty: 10-Year Structural (domestic use), 5-Year Structural (commercial use). 1-Year parts, rams & motor. Warranty is valid for manufacturing defects only.  Labor on warranty claims not included.

Heavy-Duty Components…

Fully Electronic Controls and Locks…

Fully Electric controls

2.0T Pneumatic Jacking Beam…

2.0T Pneumatics
ModelLK-3 Triple Stacker
Post Height4501mm
Total Length / Total Length with top level approach ramps extended5600mm / 6774mm
Platform Lengths: 1st level / 2nd level4800mm / 5380mm
Total Width2852mm
Distance between platforms (inside)1120mm
Distance between platforms (outer)2066mm
Platforms width473mm
Lift Height clearance under platform of bottom level on top lock / above top lock2100mm / 2135mm
Lifting Height clearance under platform of 2nd level on top lock / above top lock1800mm / 1835mm
Platform Thickness125mm
Minimum platform height 1st level / 2nd level125mm / 255mm
Lift capacity 1st level3600kg
Lift capacity top level2700kg
Drive through width clearance at ground level2510mm
Drive through width clearance 1st level2066mm
Drive through width clearance top level2066mm
Lift time of 1st level to max height60 sec
Lift time of 2nd level to max height110-120 sec

Transport pack size (3 Pieces) :                                                                                                                       Inner Hoists Pack -1050kg
                                                                                                                                                                                 Outer Hoist Pack -815kg
                                                                                                                                                 Jacking Beam / Motors / Parts Box -120kg

5300 x 550 x 710 mm
4950 x 550 x 710 mm
650 x 600 x 230 mm

Transport weight total (incl motors and jacking beam)1955kg
Motor240V 1-PH/415V 3-PH
Secondary jacking beam lift height450mm
Secondary jacking beam air pressure required14-16 Mpa
Secondary jacking beam weight and pack size120kg / 650x600x200
