Spider Mini Scissor Lifts
Model: Lift King SP Range
- SP2 2.0T Fixed width - $1299.00 incl GST
- SP2A 2.0T Adjustable width - $1320.00 incl GST
- SP3 3.0T Fixed width - $1550.00 incl GST

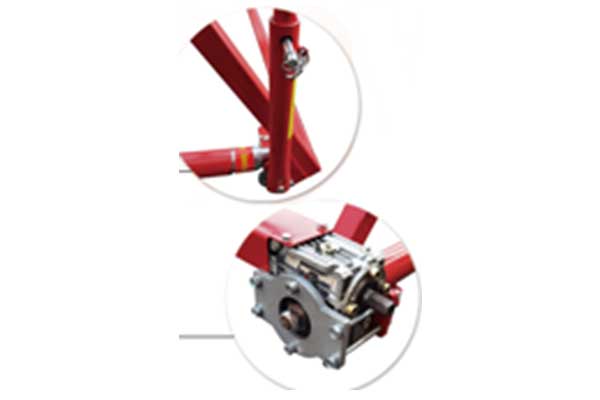

The Spider Lift adopts a worm gear structure. Unlike conventional hydraulic models, it applies leverage using bevel gears, worm gears and shafts to transmit power so that it is safe to use.It can be operated with the optional extra hand crank or any HIGH TORQUE/LOW SPEED drill, and it offers a wide range of uses ….
- For that home garage project
- For the track
- For the commercial garage or tyre shop
- For detailers, panel beaters, spray painters
- For car dealers & display cars
- Totally Portable – 1 Person Can Lift It, Take It Anywhere
- Folds Flat To Store Up Against The Wall
- Self Powered – Or Goes Up And Down With A Drill

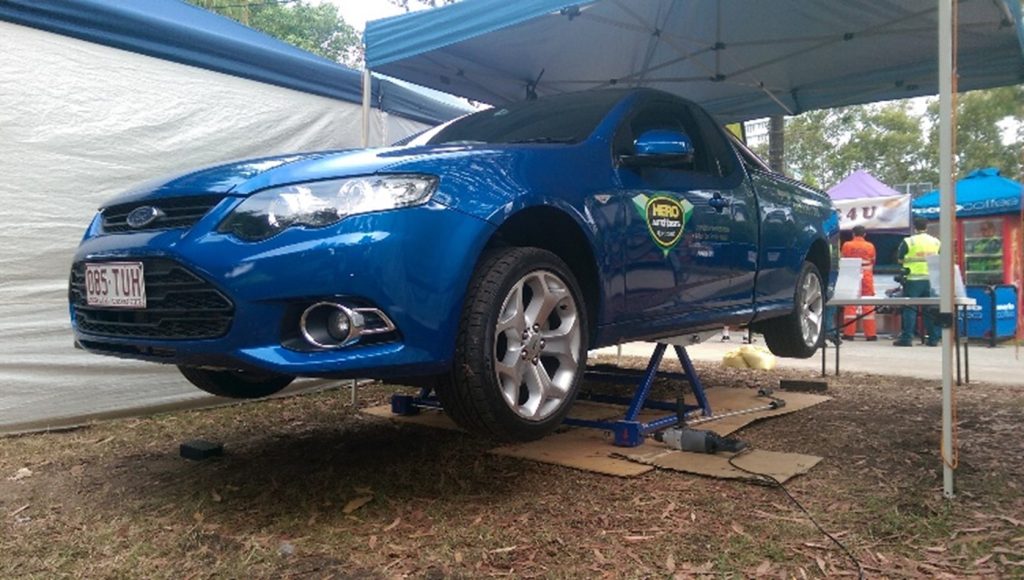

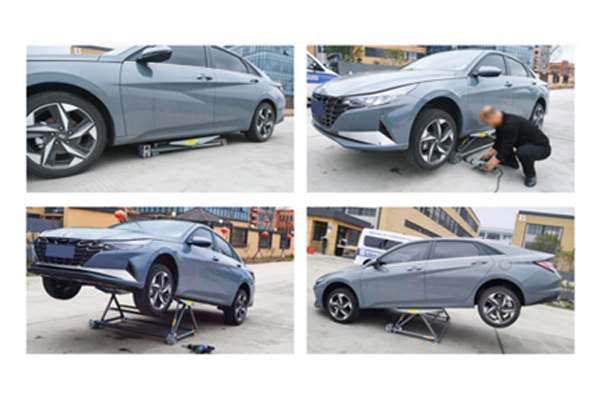

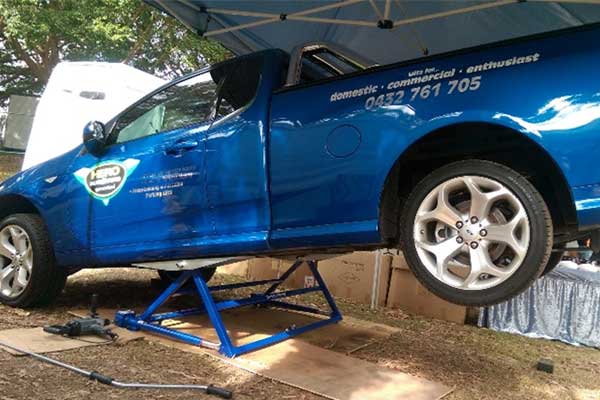

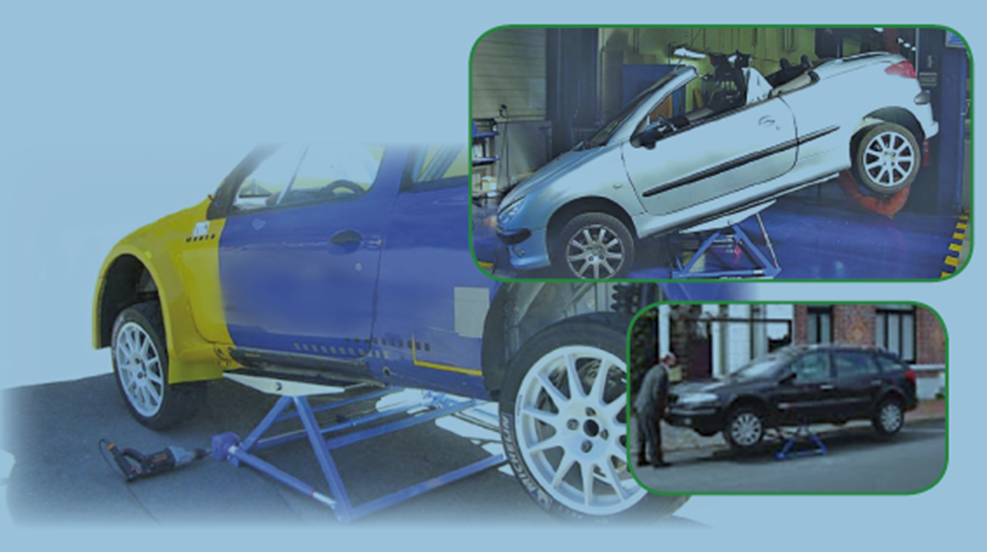

- Lift The Front End, The Back End Or All 4 Wheels Off The Ground
- Adjustable Width To Cater For Most Cars

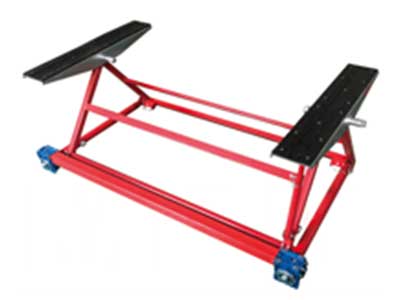

SP2 SPIDER.....$1299.00 incl GST
| Capacity | 2.0T |
| Min Height | 110 mm |
| Max Height | 560 mm |
| Lifting Platforms Size | 560 L x 140 W mm |
| Max Platform Width Fully Extended | Outside: 1530 / Inside: 1390 mm |
| Max Platform Width Unextended | Outside: 1470mm / Inside: 1330mm |
| Package Size | 1580 x 850 x 145 mm |
| Package Weight | Net 41kg, Gross 62kg |
| Warranty | 1-Year |

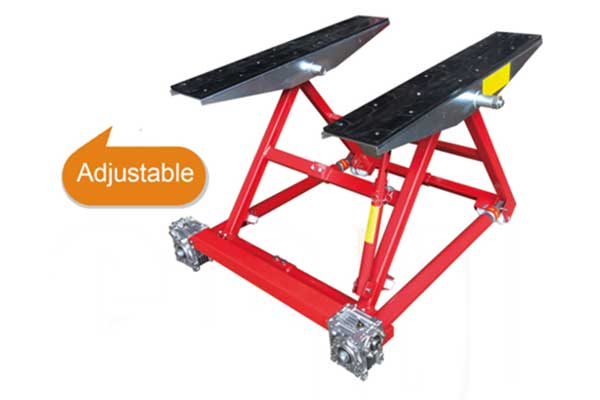

SP2A SPIDER ADJUSTABLE WIDTH....$1320.00 incl GST
| Capacity | 2.0T |
| Min Height | 150 mm |

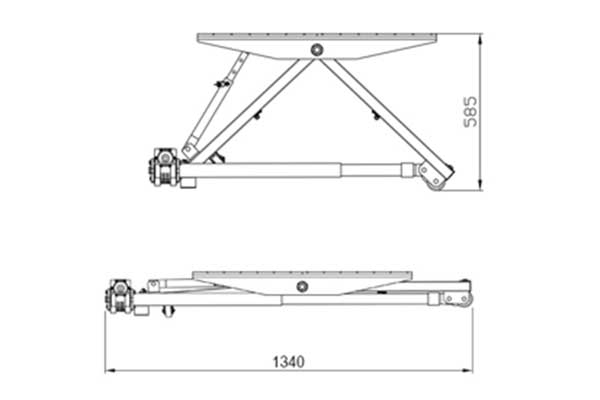

| Max Height | 585 mm |
| Lifting Platforms Size | 560 L x 140 W mm |

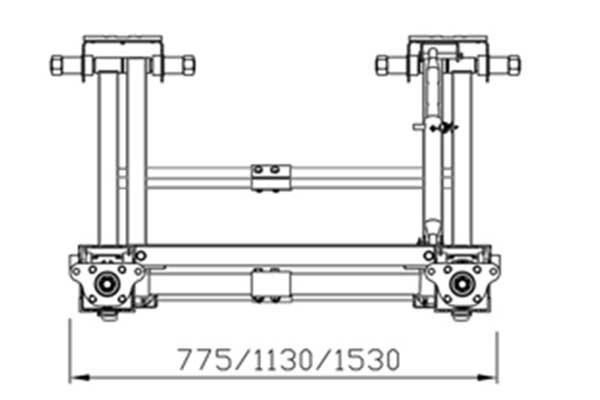

| Max Platform Widths | 775/1130/1530 mm |
| Package Size | 1390 x 890 x 200 mm |
| Package Weight | Net 63.5kg, Gross 91kg |
| Warranty | 1-Year |

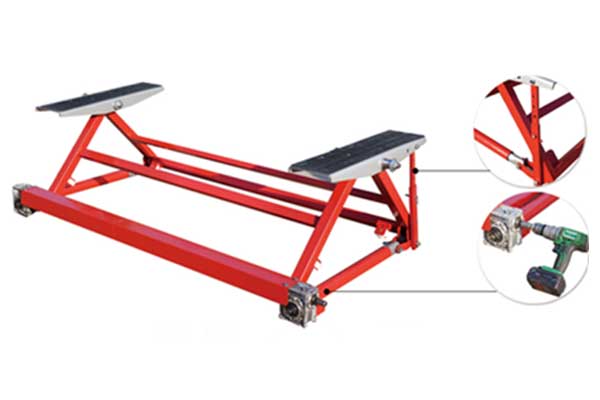

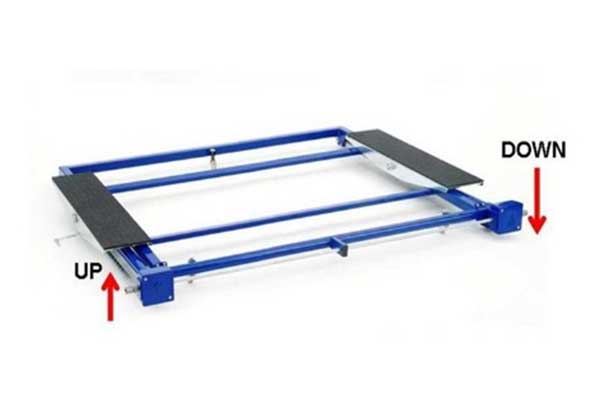

SP3 SPIDER….$1550.00 incl GST
| Capacity | 3.0T |
| Min Height | 175 mm |
| Max Height | 650 mm |
| Lifting Platforms Size | 800 L x 140 W mm |
| Max Platform Widths | 1770 mm |
| Package Size | 1770 x 1060 x 220 mm |
| Package Weight | Net 123.5kg, Gross 162kg |
| Warranty | 1-Year |

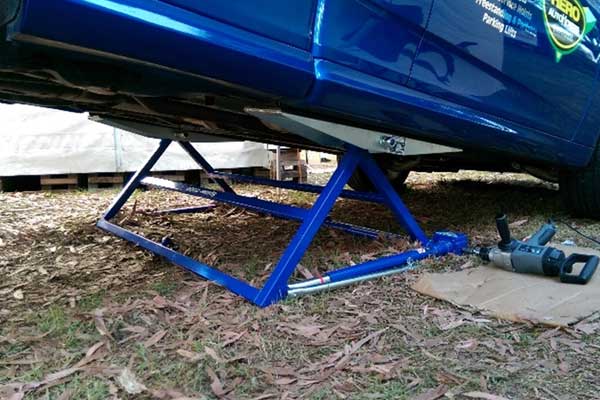

You MUST use a low-speed / high-torque drill otherwise damage to the internal worm gears will result. (Any existing concrete mixer drill sitting in your shed will do. NO impact drills or rattle guns).
The Spider Lift works with most standard vehicles, but we can’t guarantee it will fit ALL vehicles. So we advise that prior to purchasing your Spider Lift you should ensure it fits your vehicles lifting points.
The Spider lifts most vehicles from their sills, however your vehicle may have different lifting points. Please follow the Spiders platforms width from the above specification tables. You should compare this to your vehicles pick up points.
Click on the video below to watch the Spider Lift used to assist in performing a difficult diff change on a W204 Mercedes:
