Lift King LK-SPP25 Single Post Parking Hoist

Overview | Download Brochure | $5,100.00 (inc GST)

Lift king Single Post

Overview

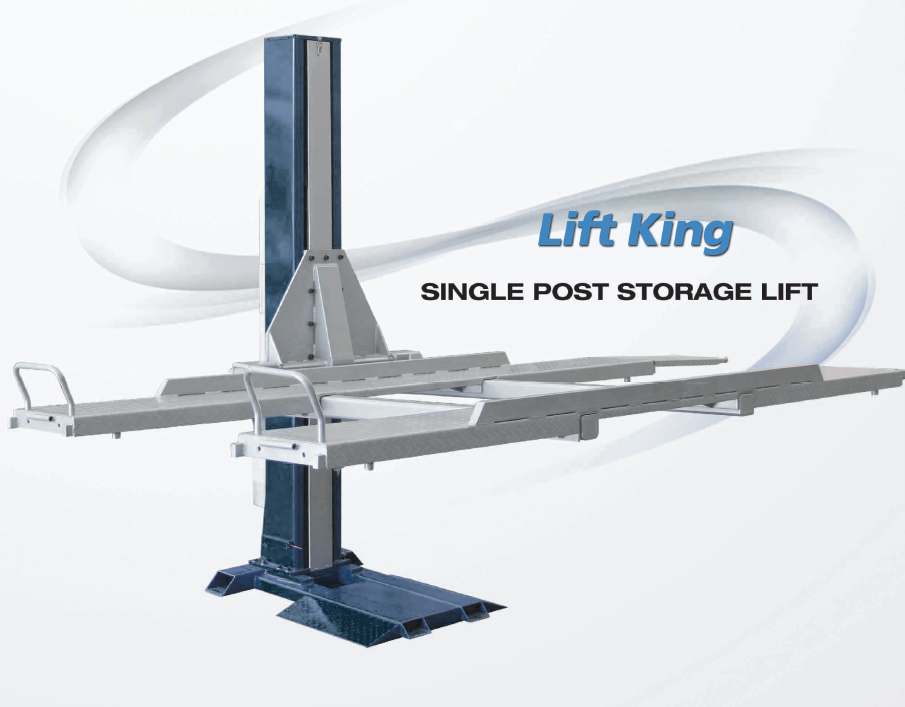

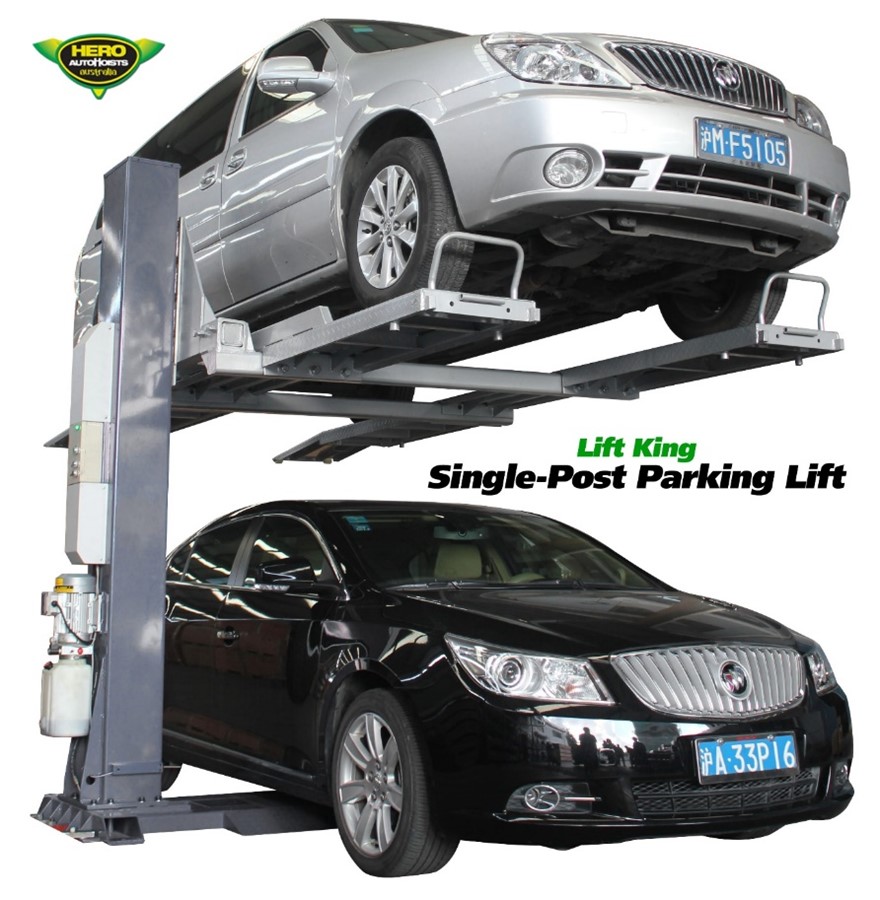

The Lift King LK-SPP25 single post hoist is a small footprint space saving design that combines the versatility of a parking hoist with central free access for vehicle maintenance.

It’s durable heavy-duty construction and 2500kg lift capacity can handle passenger cars and 4WD’s, with adjustability in the platform widths and drive on ramps to accommodate most wheel bases.

And it’s fully electric with an electro-magnetic safety lock release system, so it’s safe and user friendly for a one-hand push button control for easy lifting and lowering.

Features

  • Single post design allows for clear floor space
  • Central free access for car maintenance as well as storage of cars
  • Reliable and smooth electric/hydraulic power system
  • Easy electro/magnetic lock release system
  • One hand push button for simple lifting
  • Commercial grade hydraulic cylinder with heavy duty lift chain
  • Low post height allows for low ceiling residential installations
  • Low profile ramp deck allows for lowered cars
  • Wide deck platform accommodates various cars
  • Adjustable width platforms and approach ramps
  • Optional removable plastic drip trays to protect the vehicle parked below
  • International CE and German TUV Certified
  • Warranty: 10 Year Structural & 1 Year Parts
Previous
Next

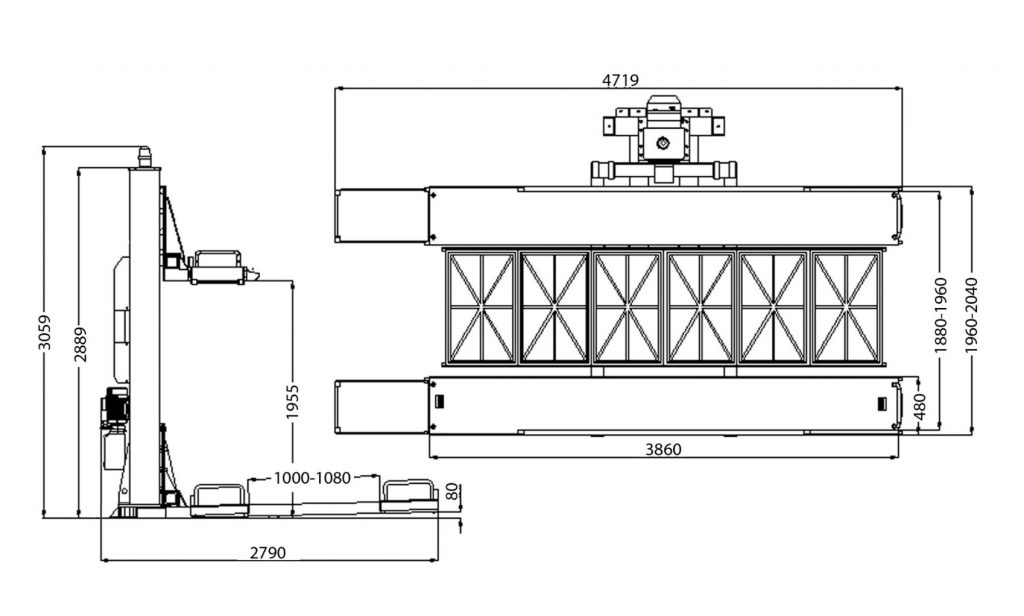

Specifications

  • Lifting Capacity / 2500kg
  • Height Overall / 2889mm
  • Width Overall / 2790mm
  • Length Overall / 4719mm
  • Minimum Height / 80mm
  • Maximum Lift Height / 1955mm
  • Service gap inside platforms / 1000mm – 1080mm
  • Platform Width / 480mm
  • Maximum width distance between Platforms (exterior) / 2040mm
  • Lifting time (loaded) 40 sec
  • Net Weight / 1050kg
  • Transport pack size / 4060 x 1000 x 580mm
