2 Post Triple Car Vehicle Stacker

Model: Lift King LK 3-2P

Exclusive to Hero Hoists (Qld) is the LK-3-2P solid platform 3-Car Stacker…

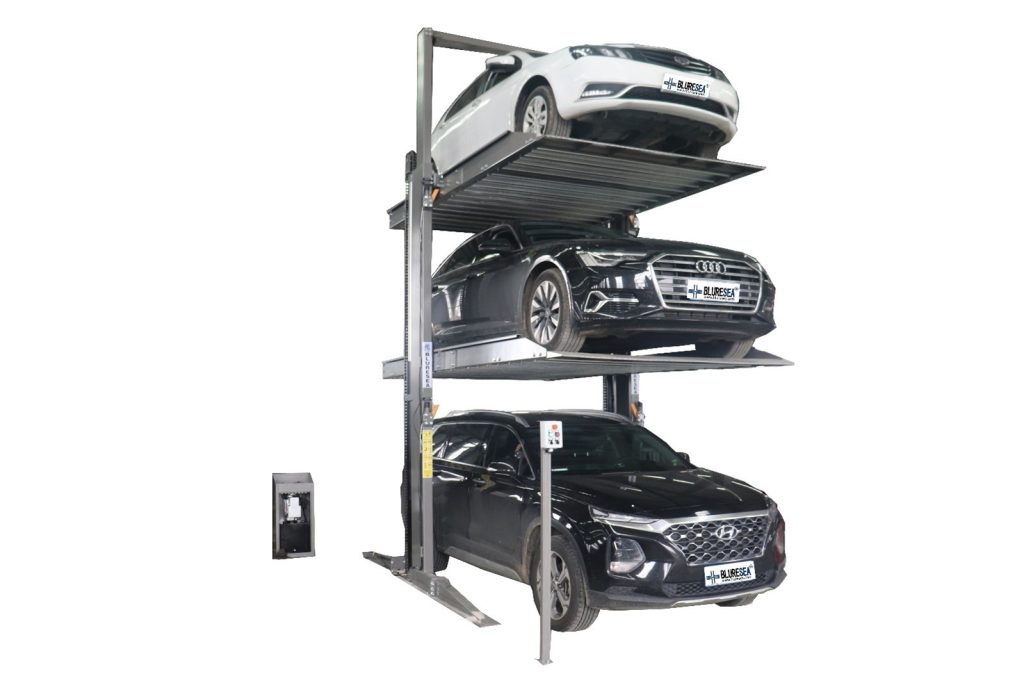

2 Post 3 Car Stacker Car Hoists For Sale

Overview

The LK-3-2P is the solution for congested workshops where rental space is at a premium and instead of having to pay for larger premises the only way to get the cars out of the way and give you more working space is to go up.

The LK-3-2P would also suit car rental companies and public car parks, and it’s the perfect solution for the private buyer owning a number of cars who needs to create more space in their home shed or man-cave.

Having solid plate platforms, this stacker allows for faster, easier and safer car parking compared to traditional stacking systems, and with just the 2 posts it also has a small footprint so is more compact to fit the tighter spaces.

User friendly with a fully electronic control panel and built in anti-fail safety devices, a generous 2100mm under platform clearance on ground level for the bigger 4WD parking and a choice of either 2000kg or heavier 2500kg weight capacity both 1st level and for 2nd levels for parking your standard sedans or storing your semi-complete resto jobs, you can’t look past the LK-3-2P as an efficient and compact storage hoist in the commercial environment or a family-friendly parking hoist for the domestic user.

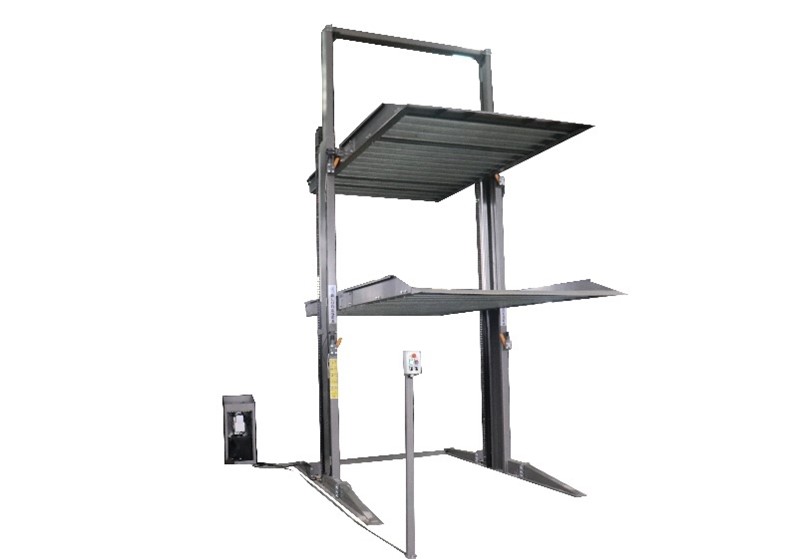

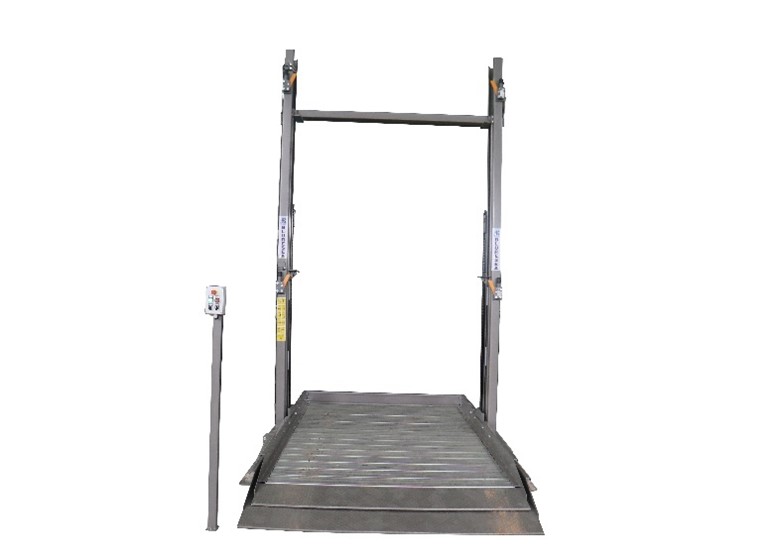

Triple Stacker Hoists

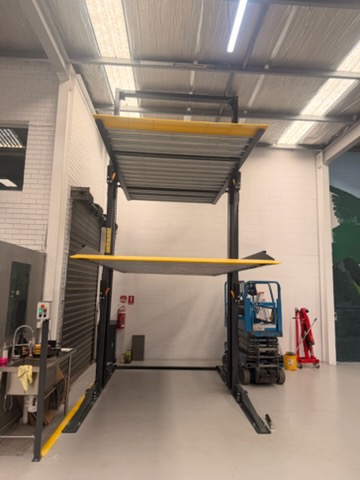

2 Post Car Stacker

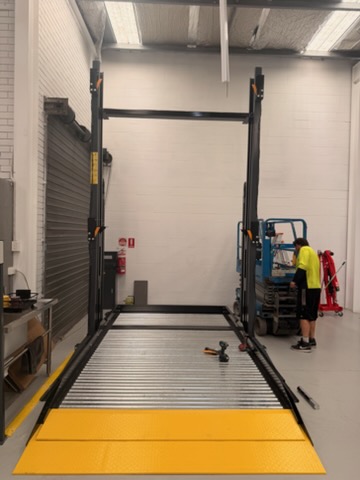

2 Post Stacker

Features:

  • Suitable for home, mechanical workshops, residential and commercial complexes, rental and storage facilities.
  • Solid plate platform for safer, faster and more convenient vehicle entry and exit.
  • Compact 2-post design with small footprint to save space and free up work area.
  • Fully electronic controls and safety lock release.
  • No incremental locking heights, just the two at 2100mm 1st level & 1650mm (2000kg capacity) & 1750mm (2500kg capacity) top level
  • Convenient to reach and user-friendly control panel for easy operation.
  • Hydraulic cylinder with chain drive in each post, coaxially synchronized gearing for safety
  • Built-in anti-fail design features, quality Italian oil cylinder seals, 115% dynamic and 150% static load tested.
  • CE approved design & tested.
  • Powder coated finish, smart looking 2-tone gunmetal grey posts with black side panels and high visibility yellow approach ramps.
  • Warranty: 10-Year Structural (domestic use), 5-Year Structural (commercial use). 1-Year parts, rams & motor.
  • Warranty is valid for manufacturing defects only. Labor on warranty claims not included.

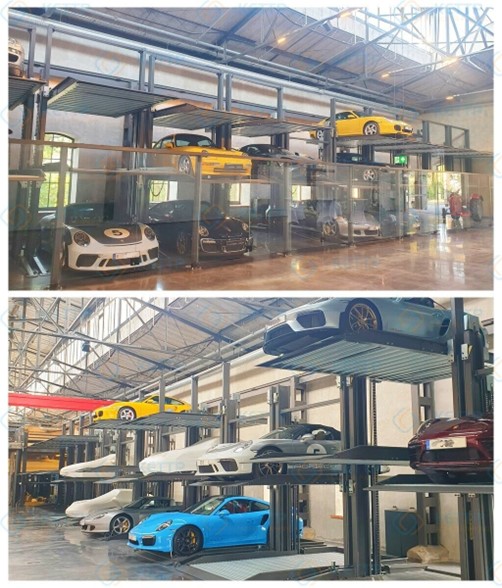

The compact 2-post design allows for convenient side-by-side car stacking……

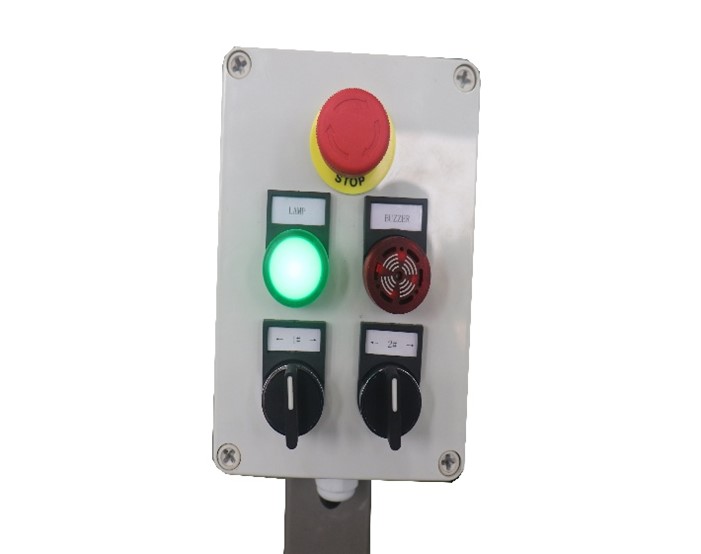

User Friendly 24V Operator Control Pad

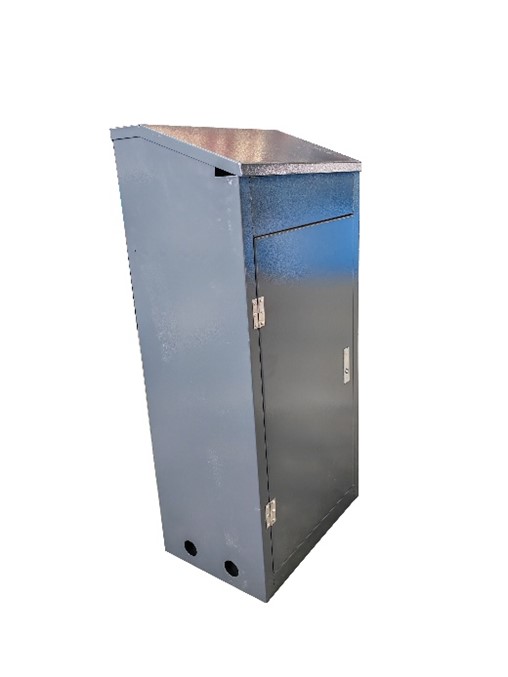

Triple Car Stacker Control Cabinet
Motor Control Cabinet

2000kg per level capacity

2500kg per level capacity

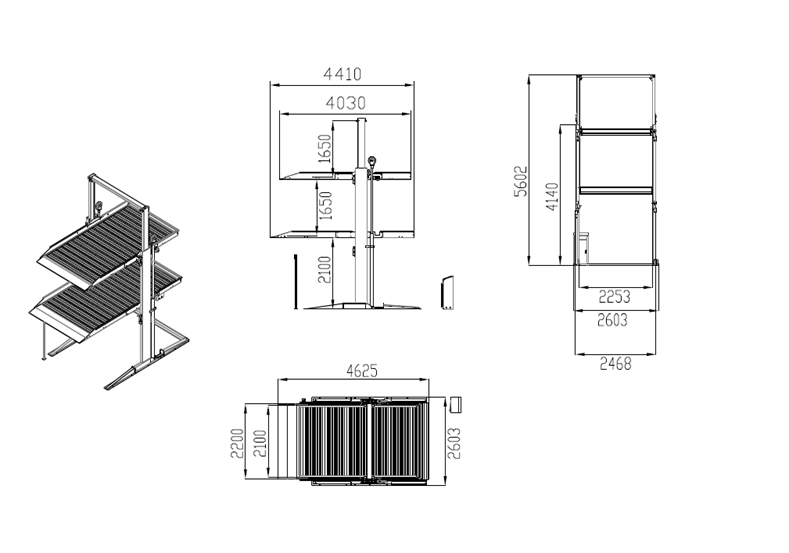

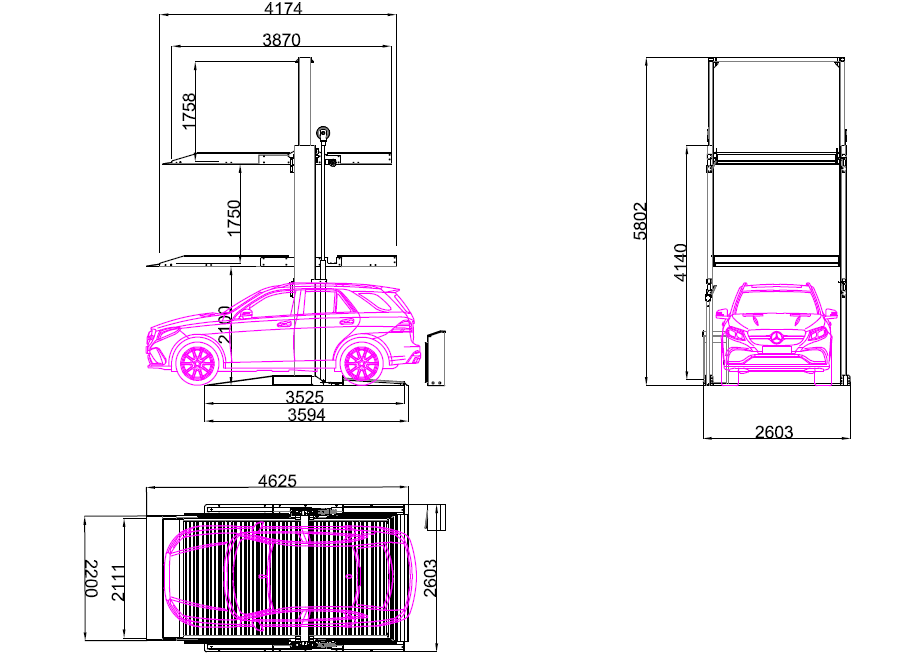

2500kg per level capacity Specifications
ModelLK-3-2P (2.0T) , LK-3-2P (2.5T)
Lift Capacity 2.0T/ 2.5T2000kg each platform /  2500kg each platform
First level lift height (bottom car clearance)2100mm
Second & Third level lift heights 2.0T / 2.5T1650mm each / 1750mm each
Overall lift height (top of posts crossbeam)(2.0T) 5602mm / (2.5T) 5802mm
Drive through width(First Level) 2100mm / (Top Level) 2200mm
Overall width2603mm
Overall length4625mm
Power240V/415V
Minimum slab depth for installation150mm with steel mesh reinforcing
Transport pack size & weight (2 x packs)

 4200 x 350 x 570mm  –   820KG

 4260 x 720 x 1490mm  –   1100KG
