2-Post Car Hoist
Base On Floor Hoist
7/2-Post 4.0T Base on Floor (Australian Certified for Commercial or Private Use) $3,100.00 (inc GST)
9/2-Post Pro 4.0T Base on Floor Hoist (Australian Certified for Commercial or Private Use) | $3,550.00 (inc GST)
Overview
Lift King’s “Base On Floor” Car Hoists are just about as popular as our Clear Floor range due to their versatility regarding height and vehicle serviceability. Lower post height makes the floor bar hoists more suitable for lower ceiling heights and because there’s no crossbar at the top they are more suitable for servicing the taller 4WD or commercial vans.
With a low 90mm pad height, single point manual safe lock release, asymmetric arm configuration, low profile narrow base plate and an assortment of stackable adapters as standard equipment the Base On Floor car lifts represent excellent value for money and a great choice.
We stock 2 models of car lifts in this range:
Lift King 7/2-Post 4.0T Base on Floor (Australian Certified for Commercial or Private Use)
Lift Kink 9/2-Post Pro 4.0T Base on Floor Hoist (Australian Certified for Commercial or Private Use)
The Lift King 7/2-Post 4.0T is perfect for the home garage, is more price budget orientated but still more than capable of comfortably lifting the standard 4WD vehicle.
The Lift King 9/2-Post Pro 4.0T is built “extra tough” for heavy duty commercial workshop use. It adopts thicker gauge 6mm steel, has heavier components, is slightly wider and lifts slightly higher.
We suggest a minimum ceiling height of 3300mm and a minimum 100mm solid reinforced concrete base. Optional extra Base Plate Extension Kits are available for added security if you feel your base is not sturdy enough or if you’re not sure of its depth.
Whether you choose the domestic or commercial grade model we guarantee that you will be extremely satisfied as both our floor bar car hoists are very well engineered, are easy to use, allow for unrestricted lift height and they also look Great!
Lift King 7/2-Post 4.0T Base On Floor (Model No. 208) Features
Features
– Australian and International CE Certification
– Manual single point safety lock release system – simple but reliable

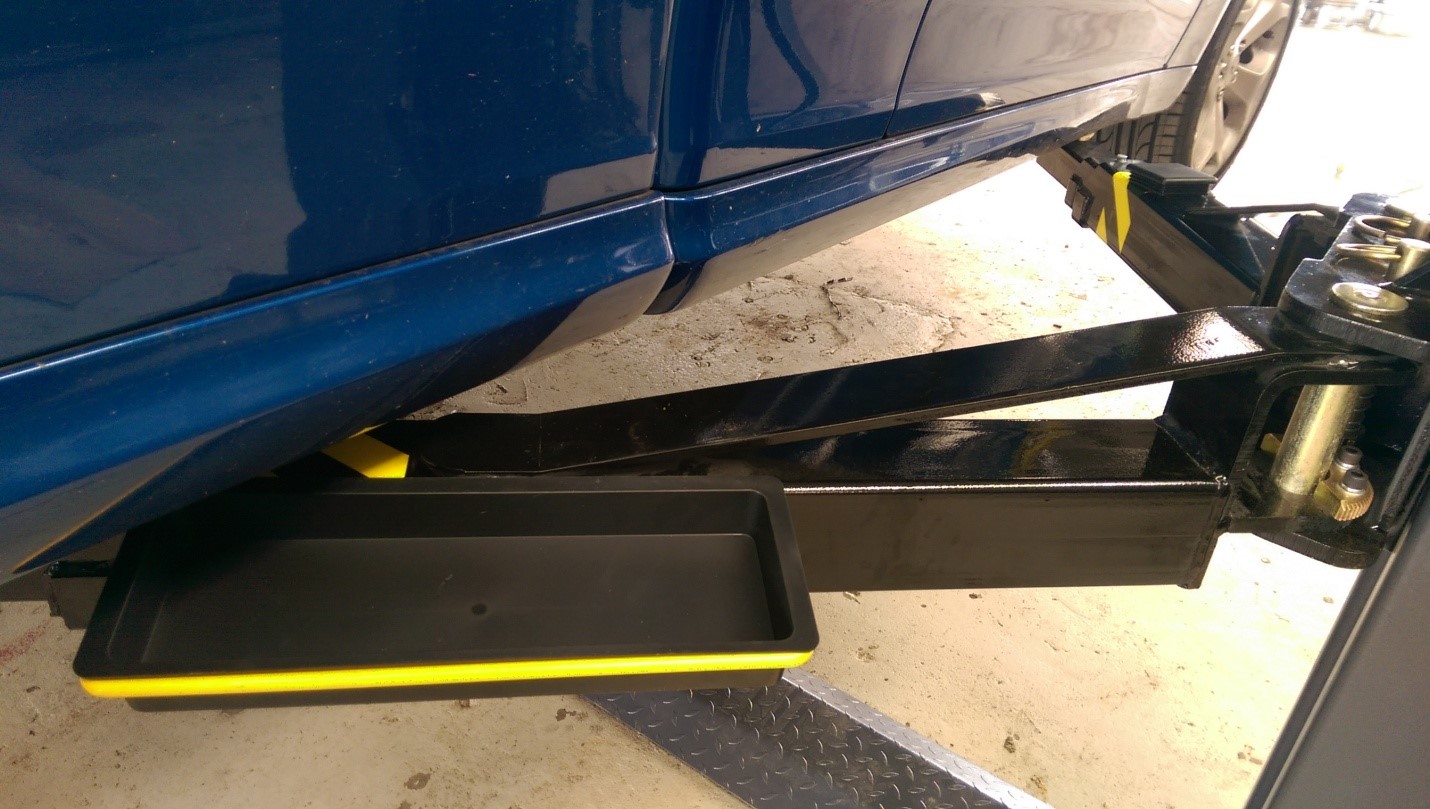

– Symmetric posts with 3-stage telescopic symmetric arms – allows for easier entry and exit from the vehicle!
– Built-in anti-burst valve for added safety
– Dyno bolts and 40mm/60mm height adapters included
– Very narrow and low height floor bar – makes it easy to roll over!
– 240V single-phase or 415V three-phase motor option, same price
– Low 90mm minimum pad height
– Base plate extension kits available for added security
– Warranty: 10-years structural (domestic use), 5-years structural (commercial use). 1-year parts.
Specifications
– 4.0T lifting capacity
– 90mm -100mm minimum pad height
– 1815mm maximum lift height sitting on top lock (without adapters)
– 3390mm outside to outside post width including post foot flange
– 3150mm outside post to post width
– 2780mm inside post width clearance
– 2554mm drive through clearance
– 2850mm post height
– Lifting time: 45 seconds
– Packaged Weight: 585kg
– NOTE: add to above lift heights with the following stackable adapters inserted: 40mm/60mm
Lift King 9/2-Post Pro 4.0T Base On Floor (Model No. 209X)
Features
– Australian Certified for Work Cover and commercial work shops
– Heavier duty 6mm structural steel and thicker gauge cables
– Upgraded carriage and arm locking pin system
– Manual single point safety lock release system – simple but reliable
– Symmetric posts, asymmetric 2-stage rear & 3-stage front arms – allows for easier entry and exit from the vehicle!
– Built-in anti-burst valve for added safety
– Dyno bolts and 40mm/60mm/125mm height adapters included
– Very narrow and low height floor bar – makes it easy to roll over!
– 240V single-phase or 415V three-phase motor option, same price
– Base plate extension kits available for added security
– Warranty: 10-years structural (domestic use), 5-years structural (commercial use). 1-year parts.
Specifications
– 4.0T lifting capacity
– 100mm -110mm minimum pad height
– 1925mm maximum lift height sitting on top lock (without adapters)
– 1965mm maximum lift height above top lock (without adapters)
– 3450mm outside to outside post width including post foot flange
– 3150mm outside post to post width
– 2850mm inside post width clearance
– 2565mm drive through clearance
– 2850mm post height
– Lifting time: 45 seconds
– Weigtht: 675kg
– NOTE: add to above lift heights with the following stackable adapters inserted: 40mm/60mm/125mm
